Chevy Cruze Racing Seat Base Plans

Racing Seat Base Conversion Plans / Template – Chevy Cruze (DXF + AI)

Convert your stock seat rails into a race-ready, harness-mounting beast.

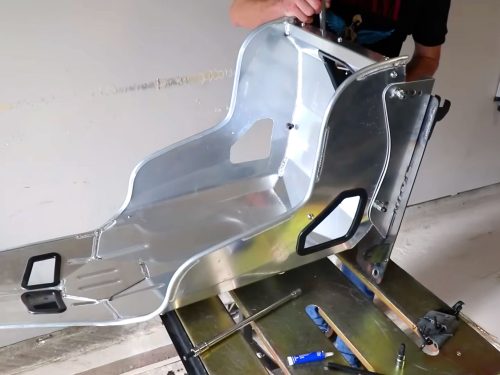

This Racing Seat Base Template is designed to help you ditch the lazy-boy factory seats and bolt in a proper Kirkey-style aluminum racing seat—or any side-mount seat that doesn’t exactly “plug and play” into the Cruze chassis.

Built off the exact measurements of my own 525 WHP Chevrolet Cruze, this seat base template is laser-cut ready and includes tabs for properly mounting a 5-point harness setup—because when the factory seat goes, so does the factory seatbelt. This base gives you a solid foundation for serious driving.

It’s track-tested, street-beaten, and built to solve a real problem: most racing seats and harnesses don’t fit without some serious fabrication. Now you don’t have to guess or start from scratch.

🔧 What’s Included:

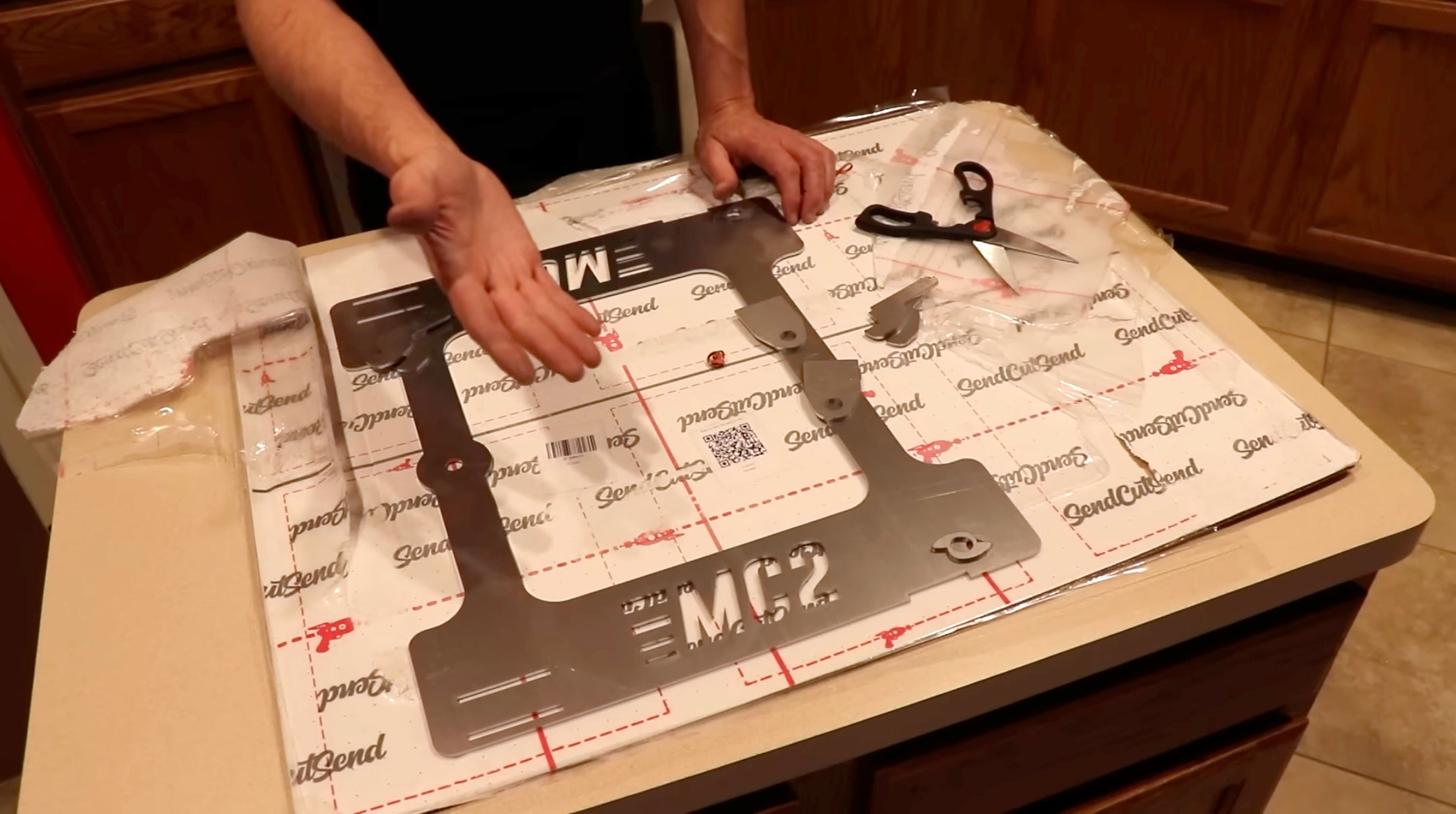

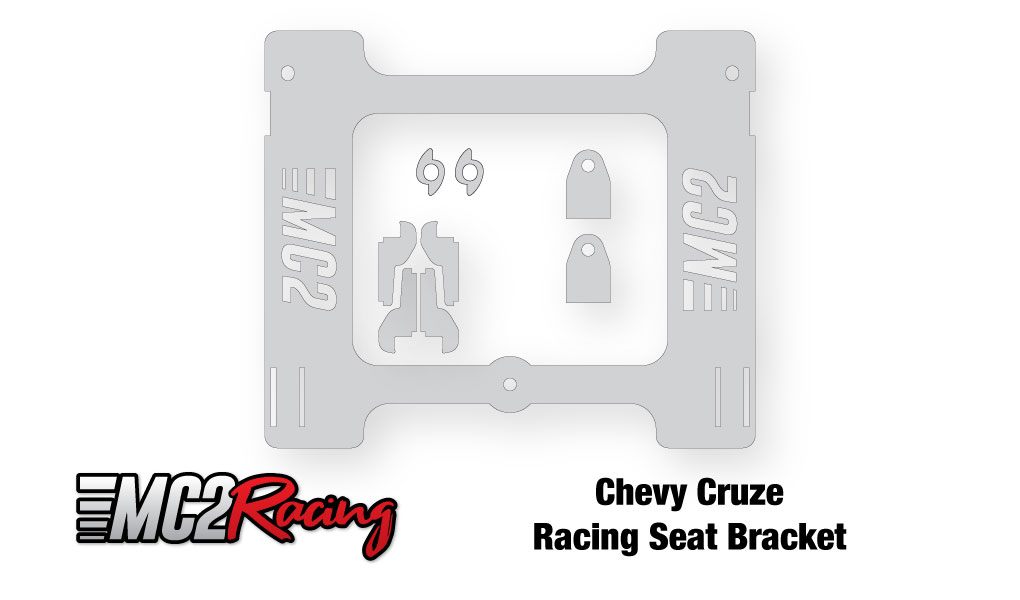

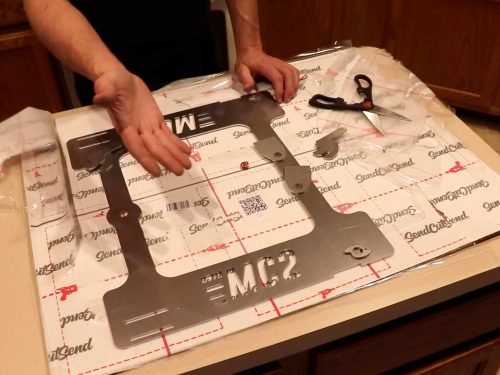

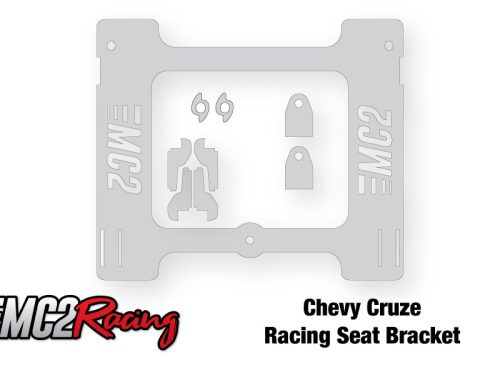

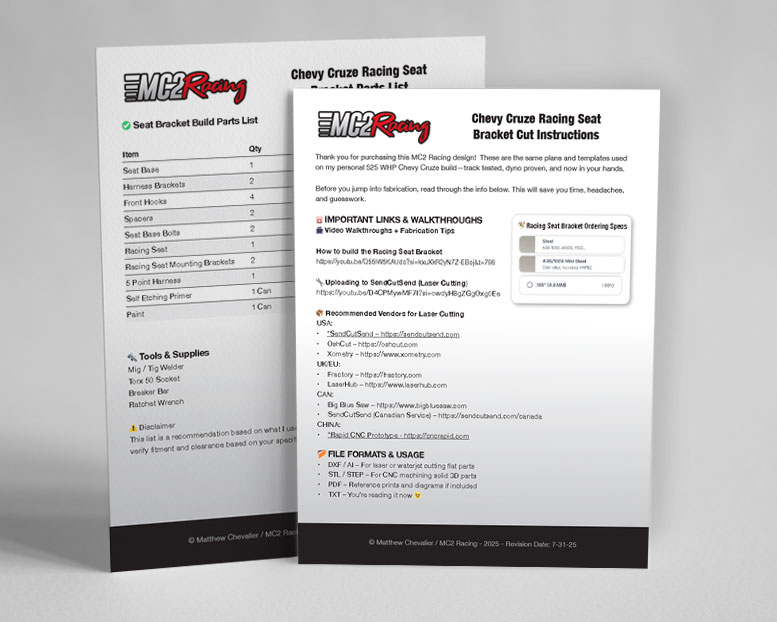

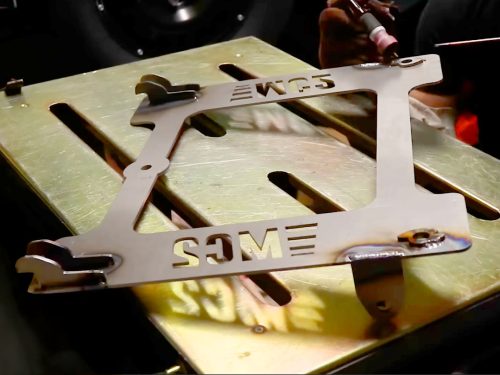

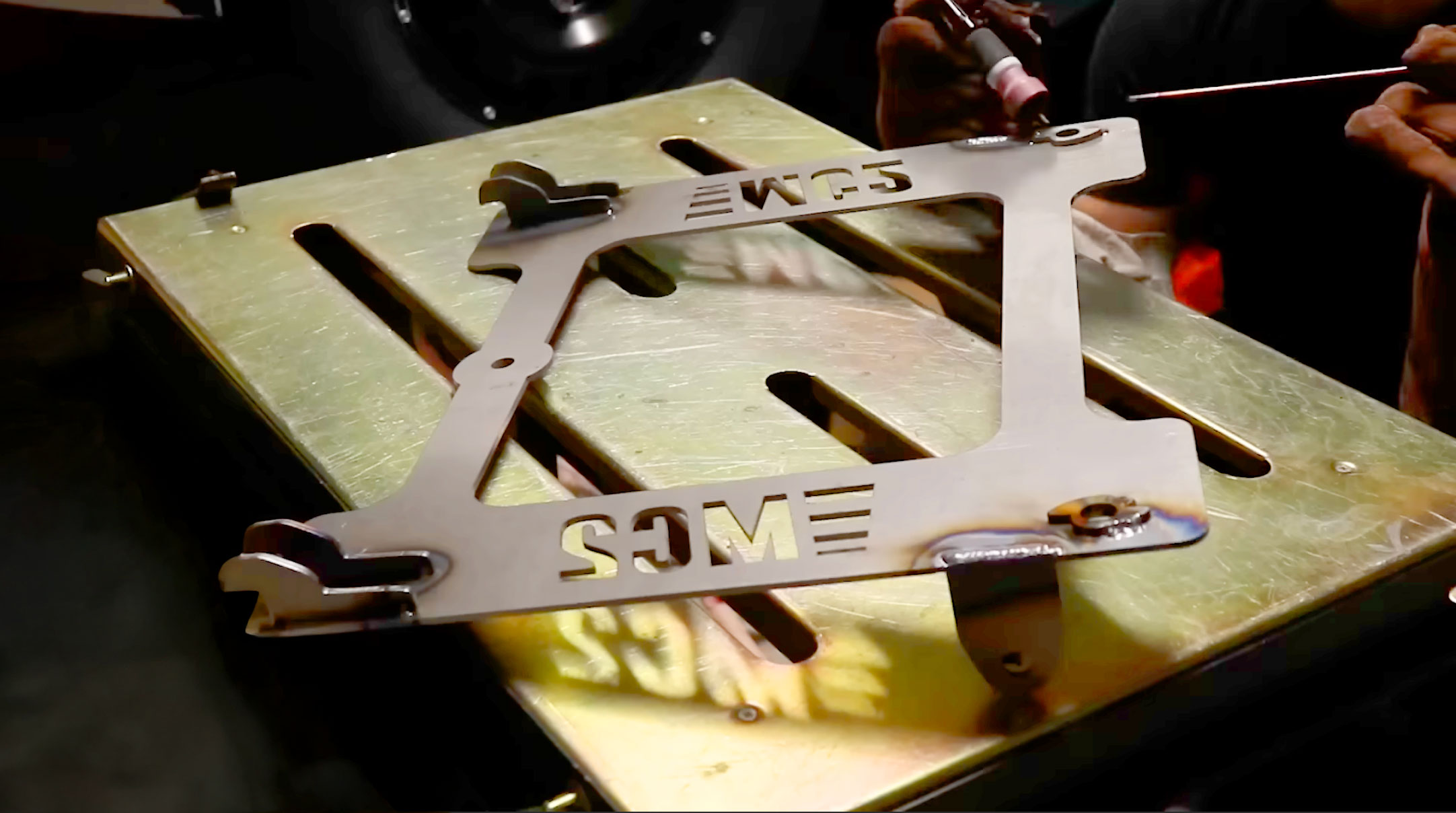

✅ DXF + AI files for laser cutting the seat base and harness tabs
✅ Weld-in harness tab template for 5-point harness mounting

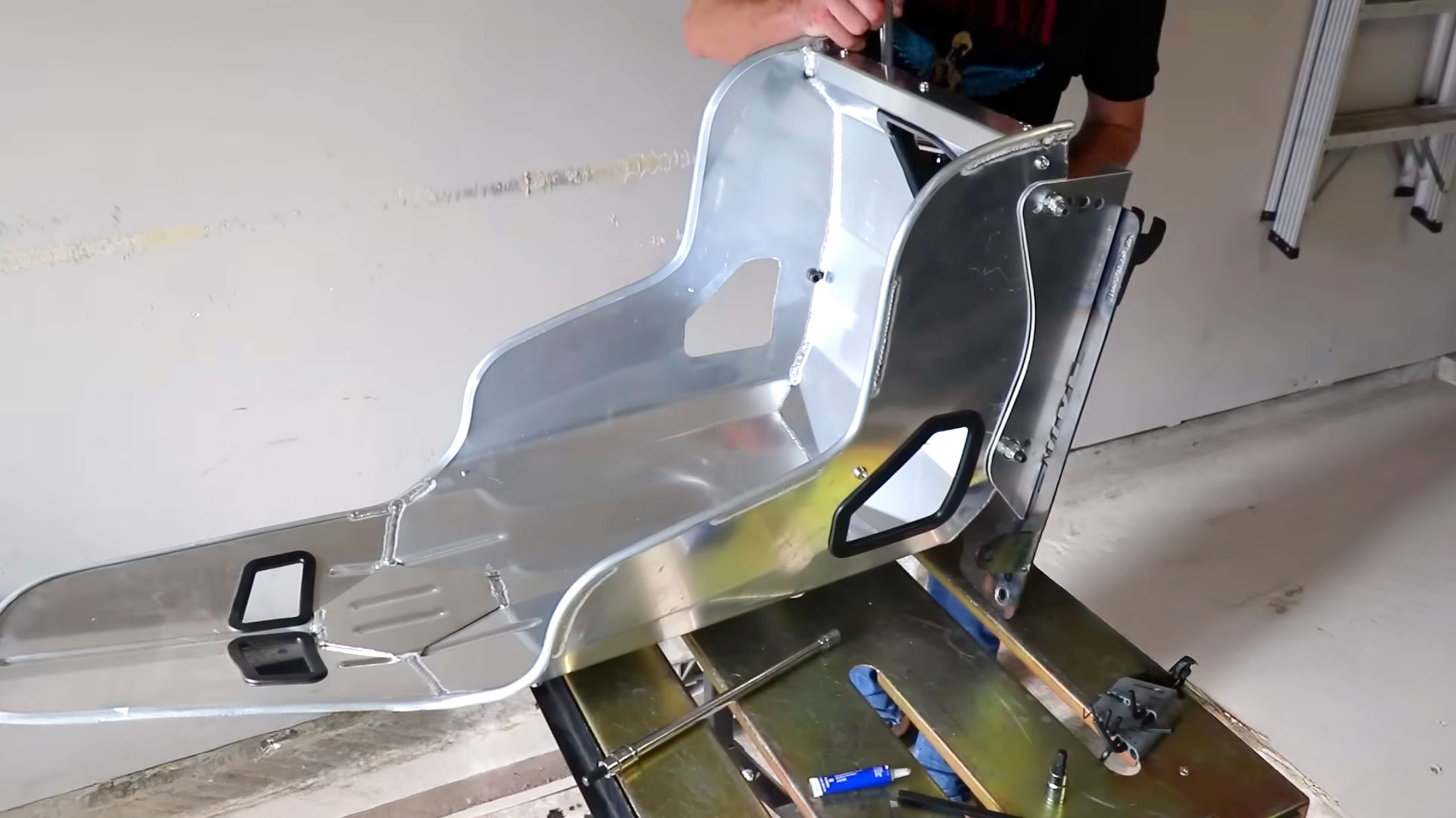

✅ Step-by-step install video (fabrication & fitment)
✅ CNC + laser cut vendor list for easy file outsourcing

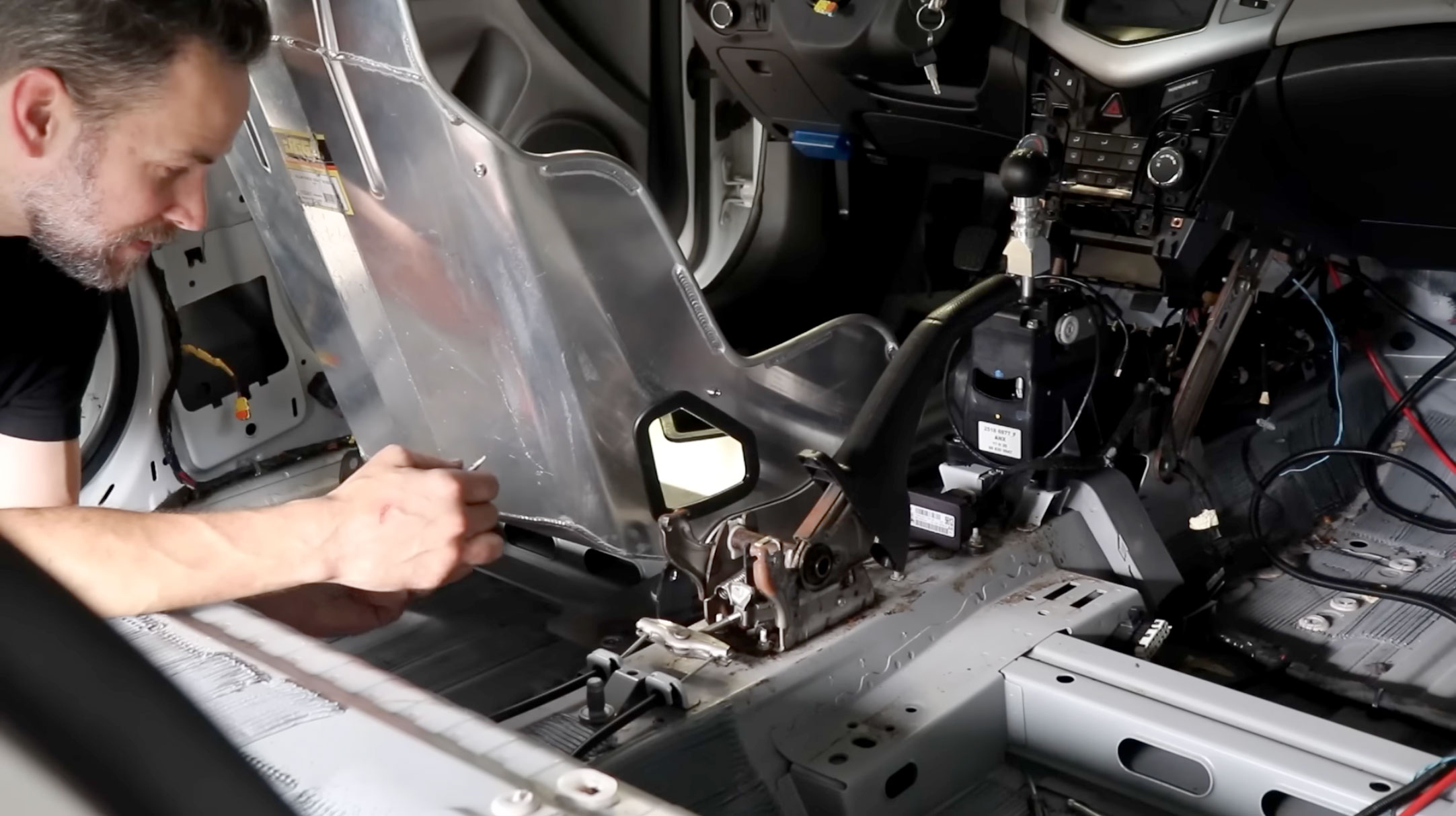

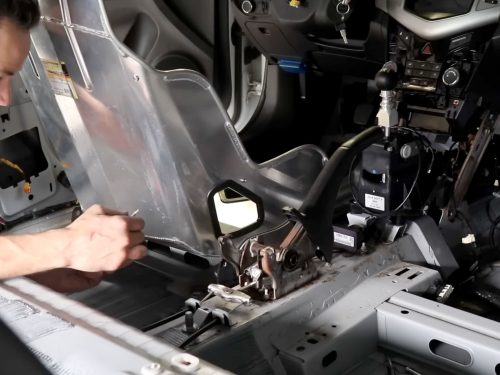

✅ Placement guide for optimal fitment and install

🧰 Fabrication Notes:

• Welding required (seat base and harness tab assembly)

• Compatible with most side-mount race seats (Kirkey, JEGS, Summit, etc.)

• Requires a separate harness bar for full 5-point harness install (not included)

• Designed for the Chevy Cruze platform (Gen 1), with optional fitment for the Sonic (slight mod may be required)

🧠 Why This Exists:

When I pulled the factory seat out of my Cruze for the build, nothing fit. No bolt-ins. No shortcuts. Just fabrication. This template is the same layout I used to run a lightweight race seat and secure a 5-point harness in my 525 WHP daily/track car. Now you can skip the headache and go straight to race-ready.

⚠️ Legal Stuff:

• Intended for off-road / race use only

• Buyer assumes all responsibility for proper seatbelt and seat mounting

• For personal use only. Files are not for resale or redistribution.
