LS Coil Conversion Bracket Plans for the 1.8L Ecotec

Chevy Cruze LS Coil Conversion Bracket Plans for 1.8L Ecotec – DXF, AI, Wiring, and Full Assembly Guide

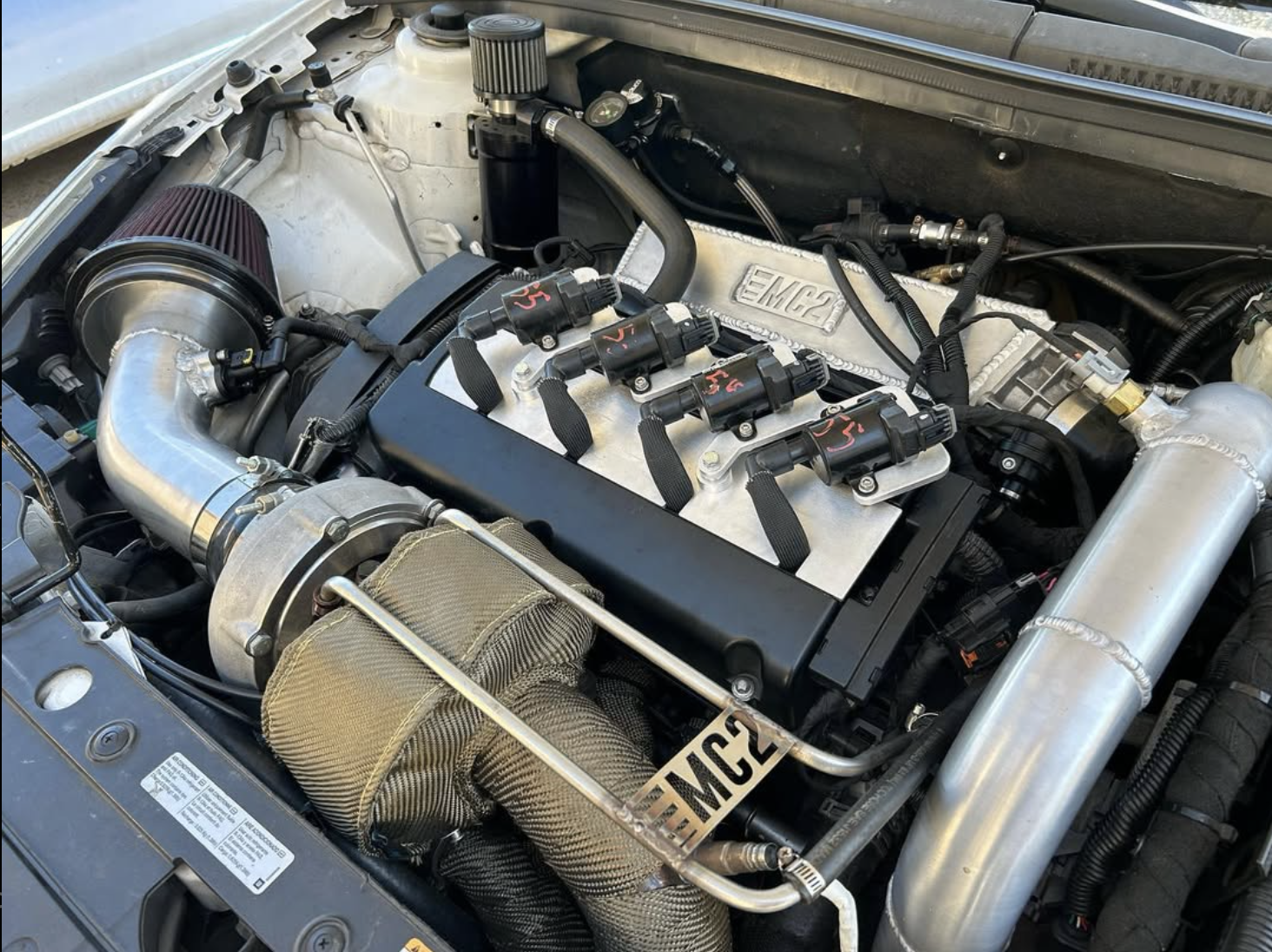

If you’re building power with a 1.8L Ecotec or 1.6L Turbo Ecotec, your ignition system can either be your weak link—or your hidden weapon. This Chevy Cruze LS Coil Conversion Bracket Plan is the exact system I used on my 525 WHP Chevrolet Cruze, and it’s held up to boost, abuse, and street miles without missing a beat.

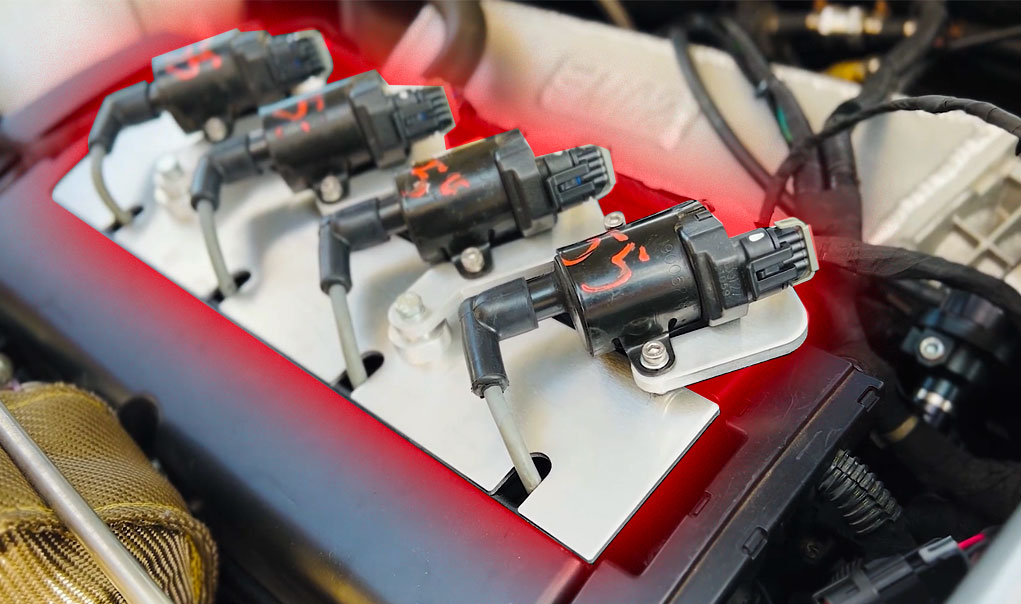

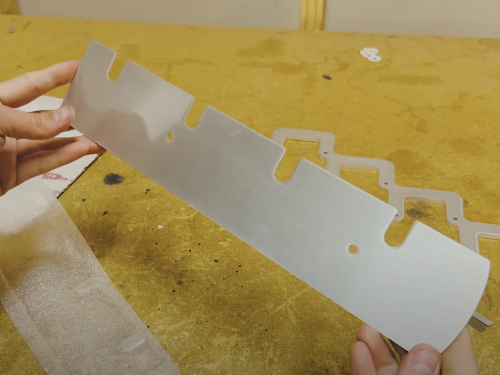

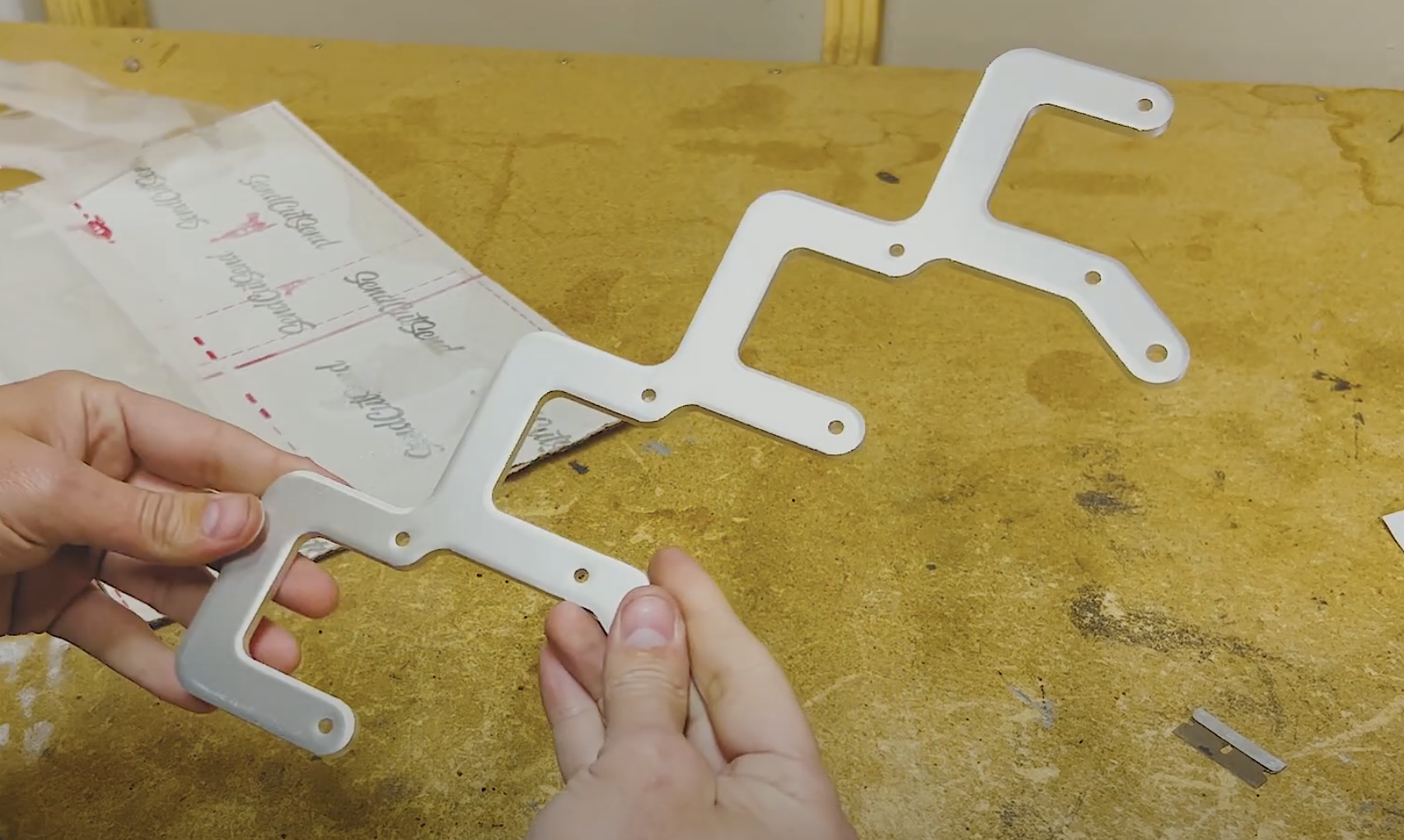

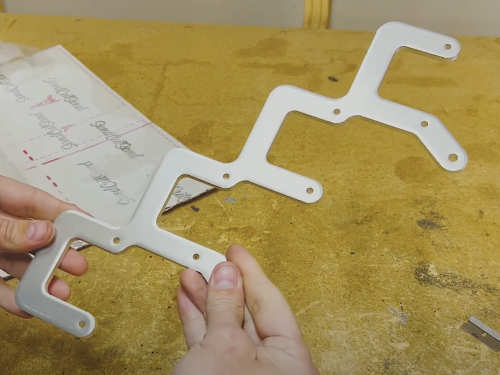

With this kit, you can cleanly install high-performance GM LS coils directly onto your Ecotec valve cover using brackets you cut yourself—or have laser-cut using the provided DXF and AI files. But this isn’t just a bracket kit anymore…

I’ve included everything you need to knock this out with confidence, even if it’s your first time.

What’s Included:

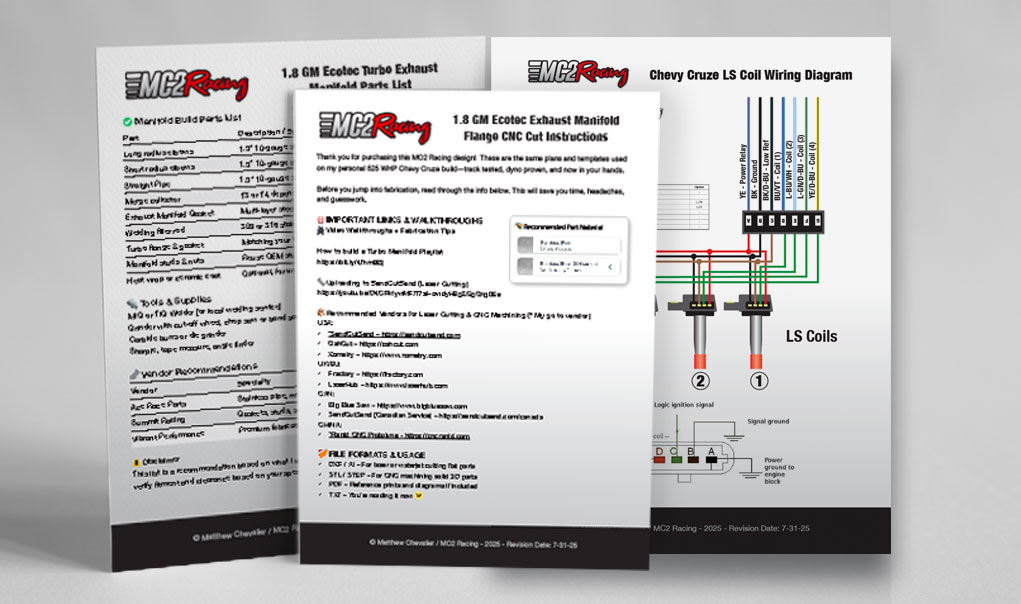

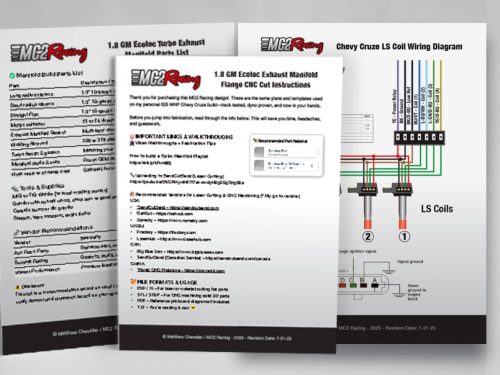

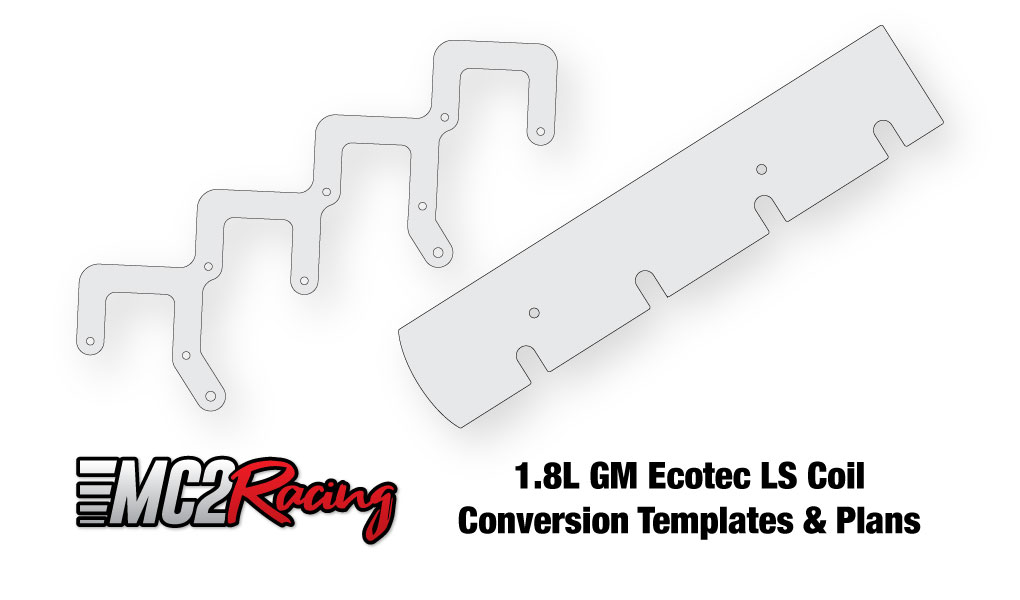

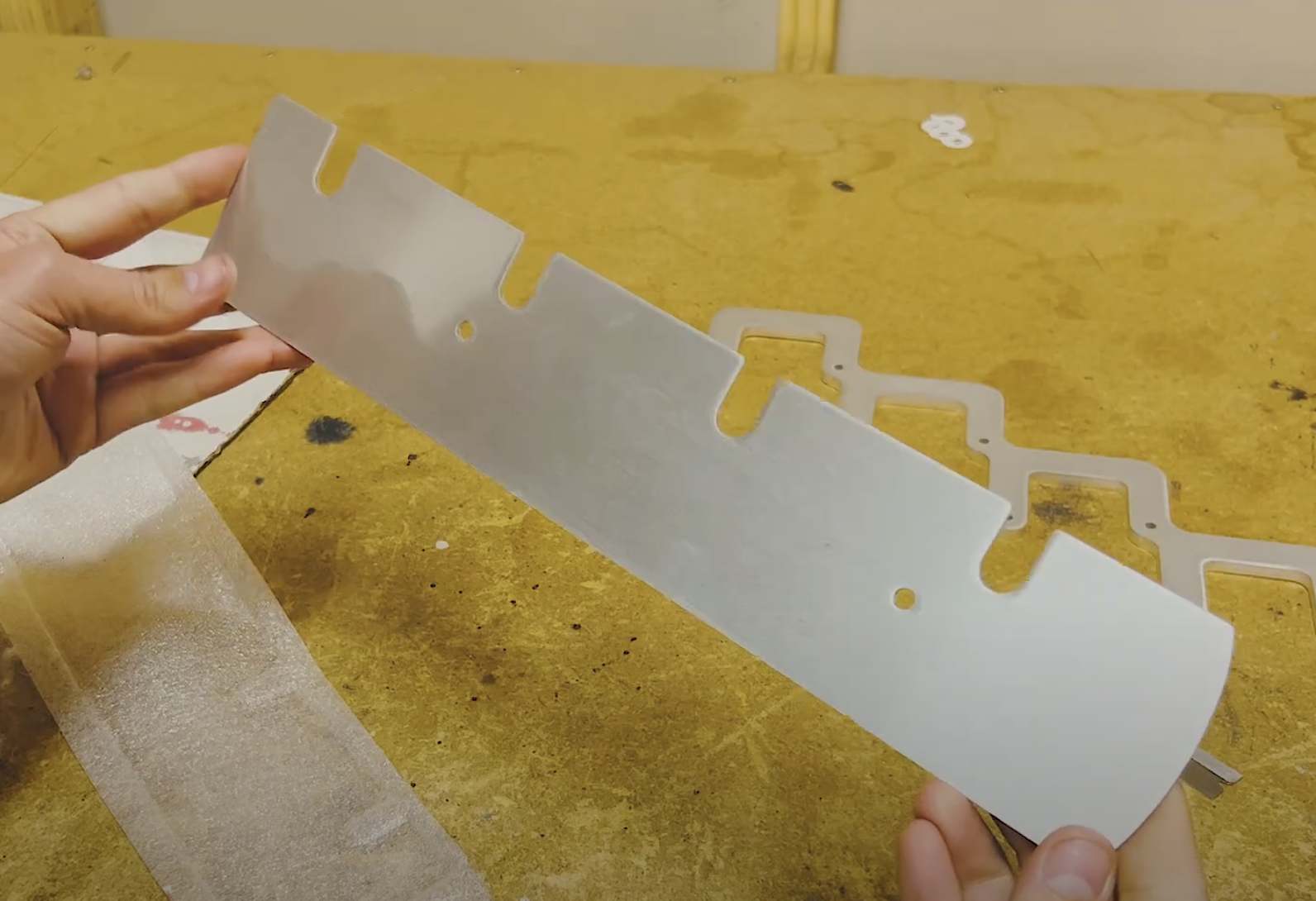

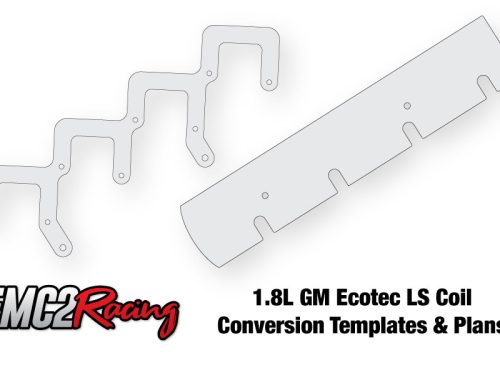

✅ DXF & AI cut files for LS coil bracket and cam cover adapter
✅ Full step-by-step install video with placement guide
✅ Complete wiring diagram for proper coil connections
✅ Parts list with recommended coils, bolts, spacers, and connectors
✅ Hardware & tools checklist for easy sourcing
✅ My trusted vendor list for laser cutting services

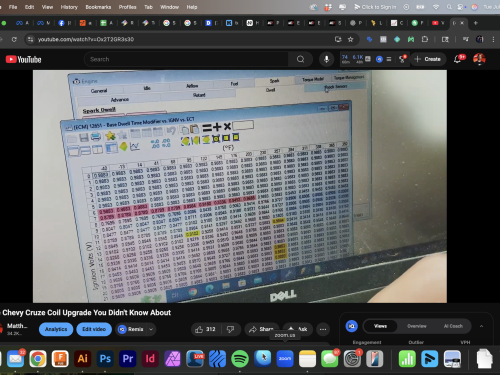

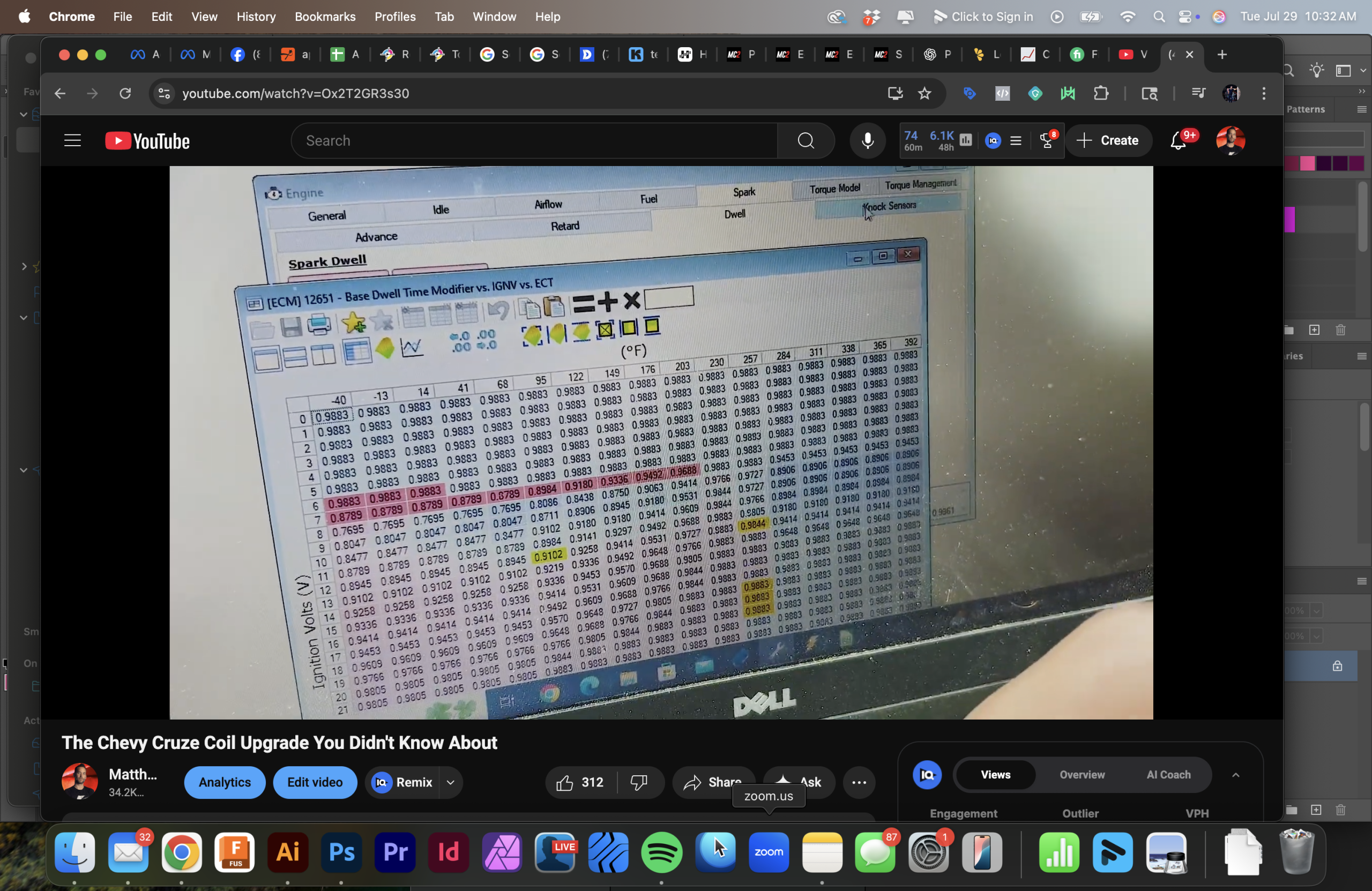

✅ Tuning info and ready-to-drop HPTuners parameters for LS coil support

Engine Compatibility:

• 1.8L Ecotec: F18D4, A18XER, 2H0

• 1.6L Turbo Ecotec: Z16LET, Z16LER, A16LET, A16LER

• Vehicle Fitment: Chevy Cruze, Sonic, Saturn Astra, Vauxhall Astra, Corsa, and Insignia 1.6T

Whether you’re running a budget turbo build or crafting a full-blown street monster, this kit eliminates spark blowout and coil cut under load. You’ll gain better reliability, stronger ignition, and cleaner tuning potential—all in one package.

No guesswork. Just a proven ignition upgrade that bolts in, wires up, and fires hard.
And yes—I’ll even give you the tuning data to make it all work with your ECU.

I’ve already battle-tested this part on the street and track. Now it’s your turn to bolt up something that actually works—no guesswork, no compromises.

Visit my YouTube channel to learn more about turning your 1.8 or 1.6L Ecotec engine into a high horsepower, road or track dominating monster!
